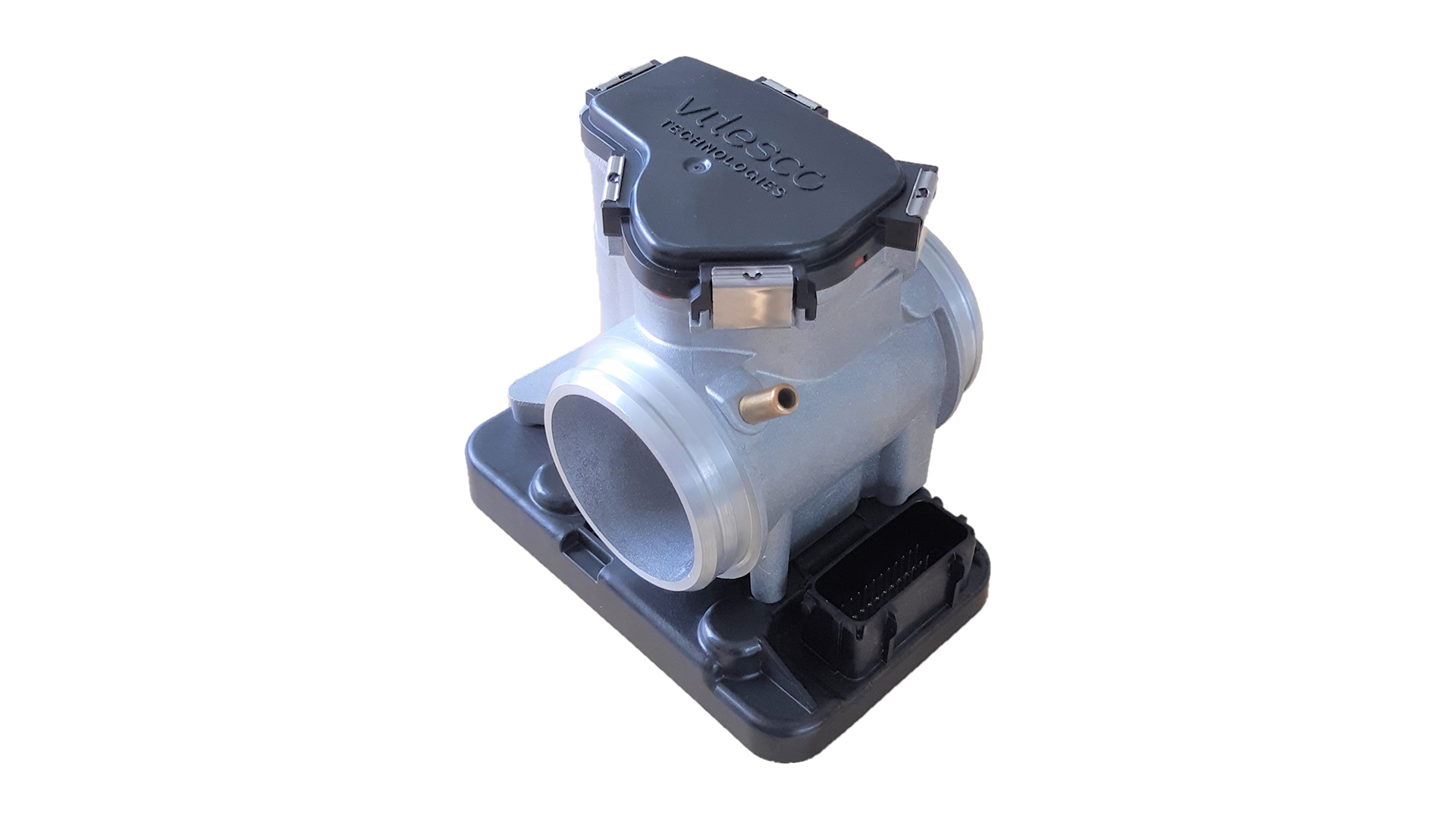

    Engine Control Unit - Air Module - Ride By Wire


    © Vitesco Technologies GmbH (exclusive rights)

    To manage airflow with embedded ECU. For single cylinder, 4 stroke engines from 250cc up to 500cc for middle range motorcycles, scooters and ATV.
    • Engine Control Unit with integrated Electronic Throttle Control and sensors
    • Uses Vitesco Technologies automotive electronics
    • Very compact size and easy mounting
    • Several configurations: engine mounting interface, throttle diameter
    • Throttle body size from ø 28 mm up to 42 mm
    • Single pocket 36 pins connector (equivalent to a 47 pins standalone ECU)
    • IPX6 and IPX9K (high pressure cleaning)
    • Operating temperature range: - 30 °C up to + 85 °C
    • 32bit microcontroller, 80 MHz, 1.5 Mb Flash Memory
    • CAN interface
    • EURO5 OBDII stage 2 compliant
    • Separate safety monitoring unit for ETC system (ISO-26262 compliant)
