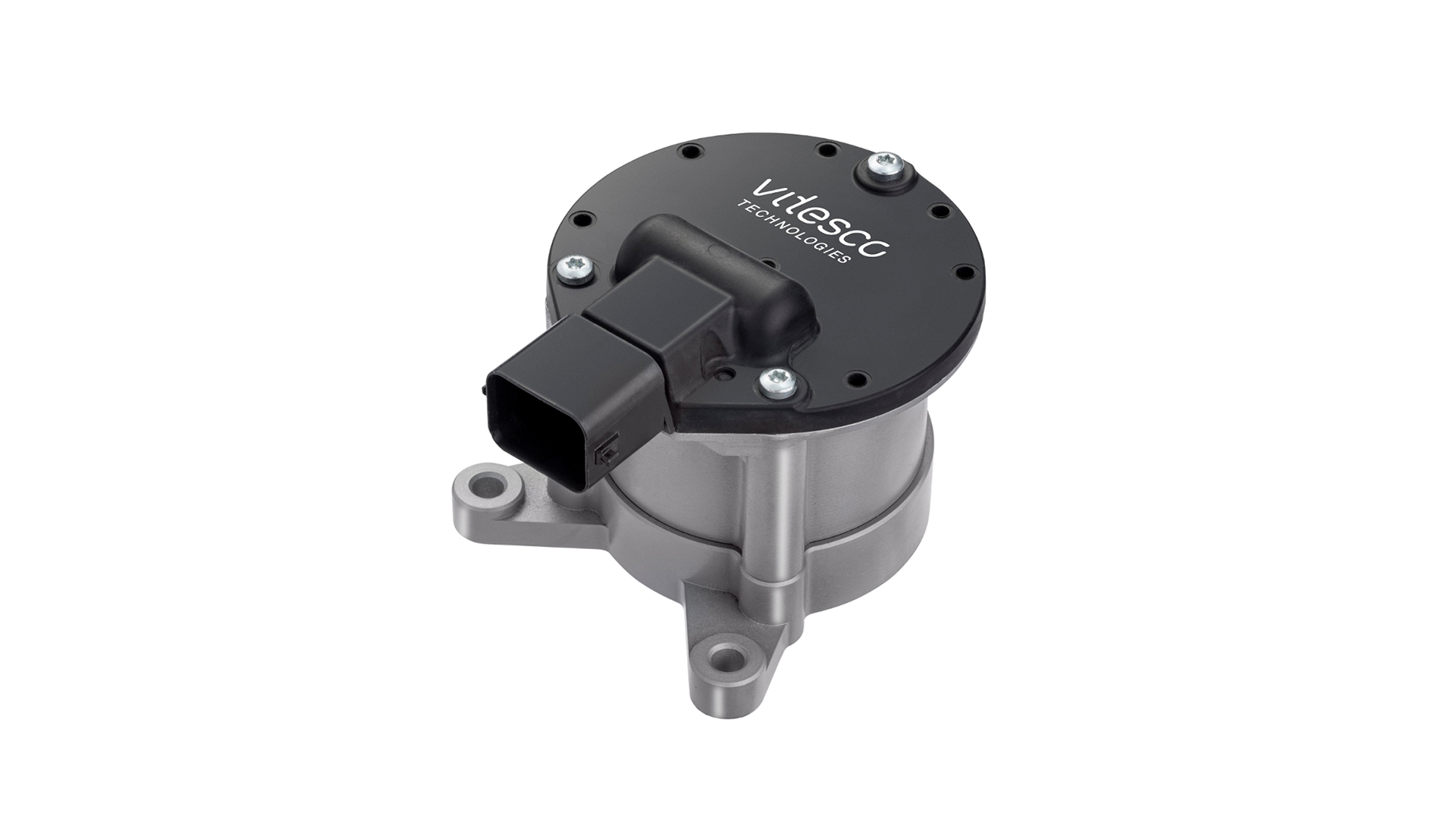

    Electronic Transmission Actuator 270


    © Vitesco Technologies GmbH (exclusive rights)

    The eTA270 is a multipurpose smart actuator for harsh environments with fully integrated enhanced control logic and position sensor.
    • Highly efficient and fast field oriented BLDC motor control
    • Cost effective VT-owned ASIC for motor control
    • Enhanced protection of electronics by overmolding technology
    • ASIL C support possible
    • High power density
    • Motor: 2Nm maximum torque at 0 RPM, 270W class BLDC motor
    • Temperature: -40°C to 125°C (Option: 140°C)
    • Weight: approx. 1.1 kg
    • Protection class: IP6k9k
    • Mounting: submerged with pass-through connector or external
    • ASIL level: QM (Option: up to ASIL C)
