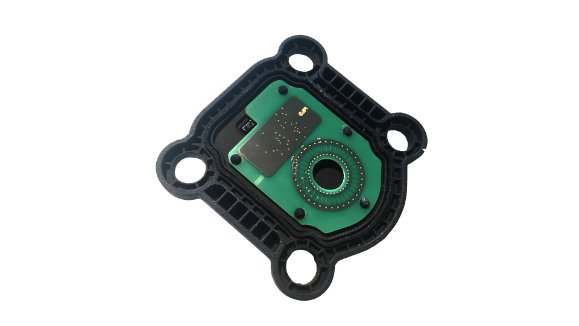

    iRPS is a compact inductive sensor dedicated to high-speed sensing. It provides accurate positioning to drive e-motors with the best efficiency. For most of e-motor applications: e-drive, brake booster, BSG, steering… Also for Aeronautics & Industry.
    • Immune to low frequency magnetic fields
    • Magnetless technology w/o rare earth
    • Light weight for sensor & target
    • Configurable to different pole pair number
    • Various mechanical integrations and packaging possible
    • Temperature: - 40 °C up to 150 °C (160 °C in peak)
    • Supply Voltage: 5 V (3.3 V possible)
    • Supply Current: < 23 mA
    • Output signal: Analog Sine / Cosine
    • Speed: up to 120 krpm (for 4 pairs of pole)
    • Accuracy: < ± 0,5° electrical
    • Safety: ASIL C, ASIL D capable
